Frictional heat in ball screws influences the position accuracy, particularly when measuring indirectly in the drive only. Positioning tests in compliance with ISO 230-3 enable an analysis of thermal behavior through repeated positioning to two points within the measuring range limit.
Positioning accuracy of axes
The positioning accuracy and repeatability of a machine tool can be determined by moving to specified positions. At the same time, it is possible to measure the guideway error perpendicular to the direction of the machine tool’s slide.
Circularity test: detecting deviations
The data measured with the circular interpolation tests permit conclusions about the causes of the errors. Circular interpolation tests with large radii provide information on the machine geometry. Circular interpolation tests with small radii provide information on the control accuracy under high axis acceleration rates (radii: from 0.1 mm up to 115 mm).
Free form test: determining inaccuracies

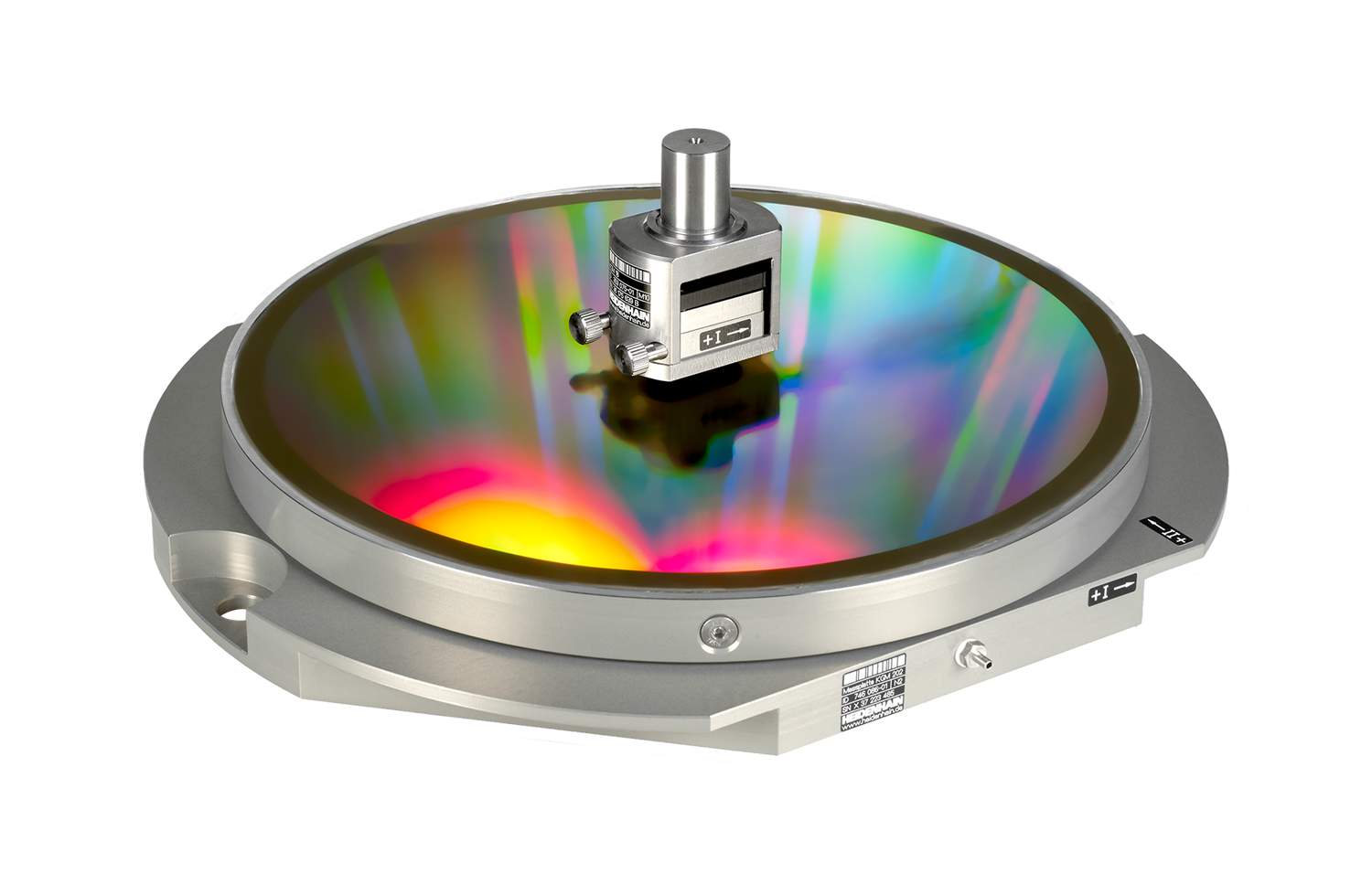

In the free form test, the KGM 200 series encoders measure the actually traversed contours of any form by CNC tool machines in the working plane. With the ACCOM software, it is possible to subsequently evaluate the dynamic behavior of the machine.
