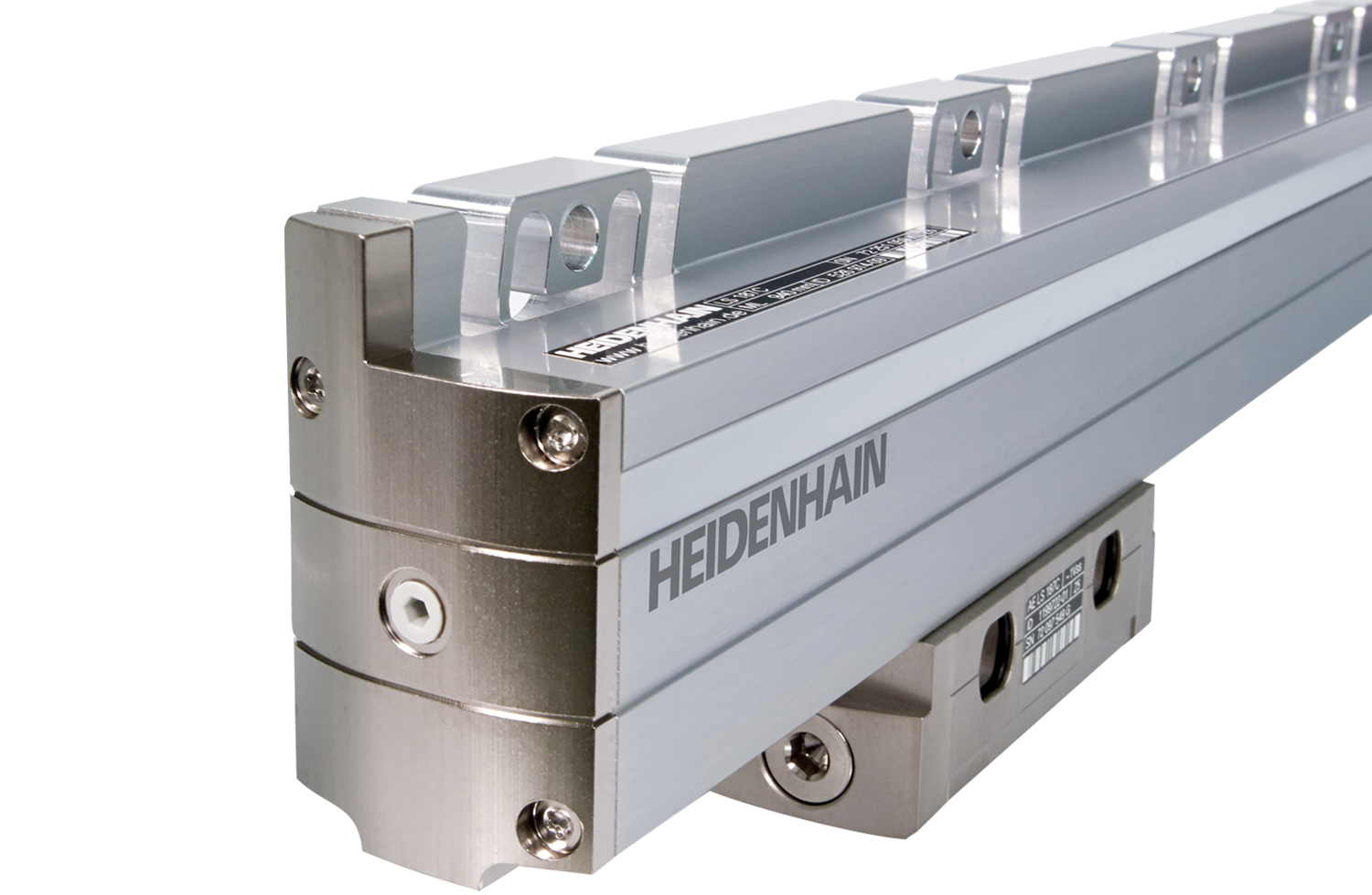

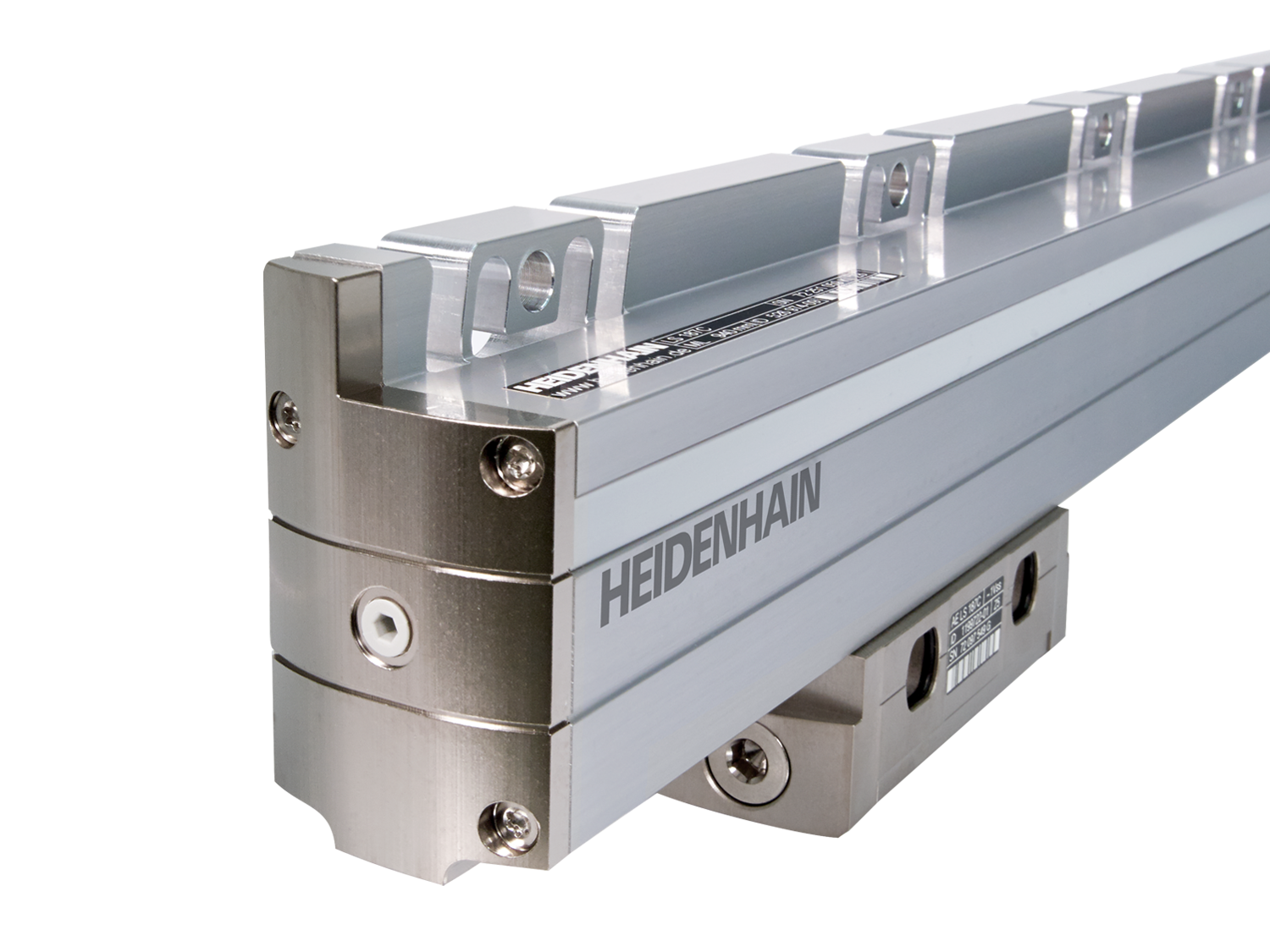

LS 100 series

Incremental linear encoders with full-size scale housing

  • For linear axes up to 3040 mm long
  • Accurate and reliable position measurement
  • Rugged design
  • Interfaces: 1 VPP and TTL

Reliable protection

The proven seal design of the LS 100 provides optimal protection from chips, dust, and coolant. Due to the diagonal orientation of the sealing lips and the scanning unit's sword, the encoder can be mounted either upright or on its side.

Easy installation

Sealed linear encoders from HEIDENHAIN are very installer-friendly. As guided systems, they provide wide mounting tolerances for fast and easy installation.

High vibration tolerance

Linear encoders with a full-size scale housing feature long measuring lengths, high ruggedness, and superb vibration tolerance. As a result, the LS 100 series thrives even in harsh environments.

Air supply for linear encoders: optimal supply of sealing air
