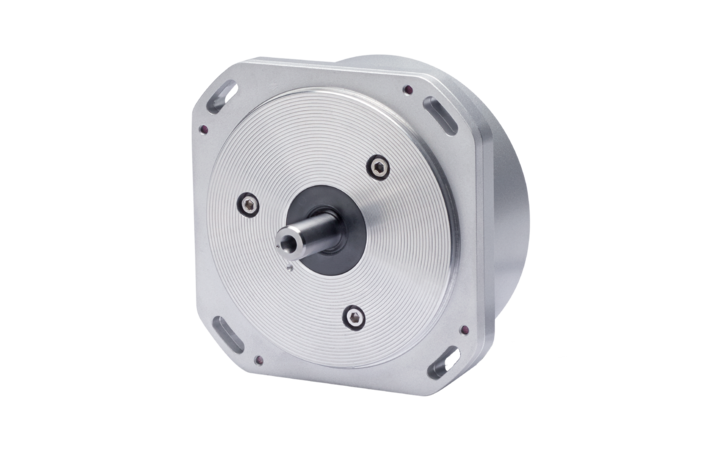

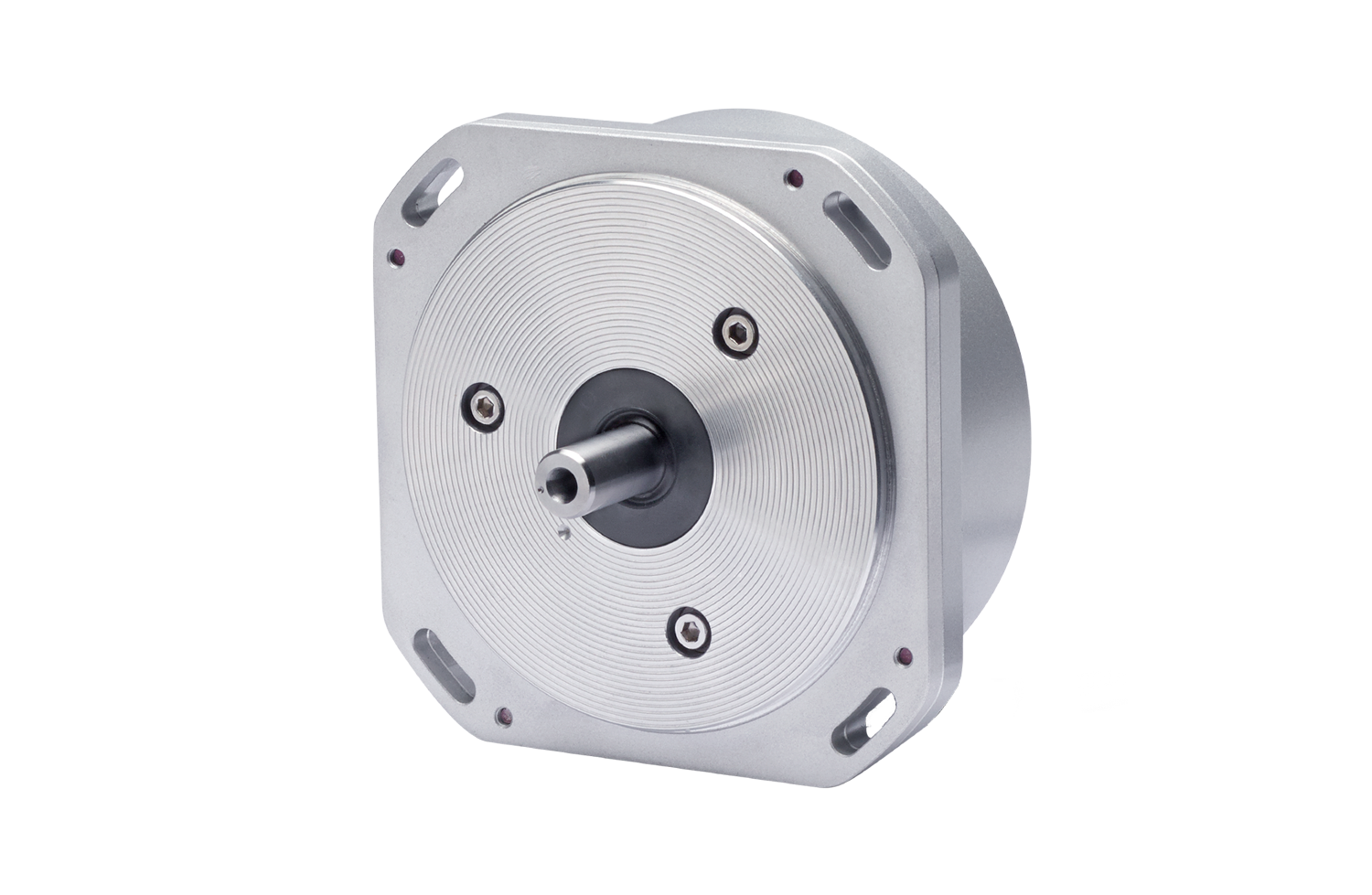

ROD 200 series

Incremental angle encoders with a compact design

  • System accuracy of ±5”
  • For separate shaft coupling
  • Solid shaft with ∅ 10 mm
  • Signal periods per revolution: up to 180 000 with integrated interpolation
  • Interfaces: TTL, 1 VPP

Flexible coupling

The solid shaft of the ROD 200 series angle encoders is connected to the measured shaft via a separate coupling.

High accuracy

Based on their high line count of 18,000 lines, these angle encoders can transmit either sinusoidal output signals or square-wave signals additionally interpolated within the encoder.
