Evaluations units for metrology applications

HEIDENHAIN offers the right evaluation unit for any application, featuring numerous metrology measurement and evaluation functions. For automation solutions, these results can be further processed through integrated switching functions. With a splash-proof front panel and rugged cast-metal housing, the HEIDENHAIN evaluation units can easily handle harsh everyday shop environments.

Home Products Readouts Evaluation units
Receive a newsletter

Digital readouts

Videos
Service & support
Training courses
Downloads
General Catalog
Brochure

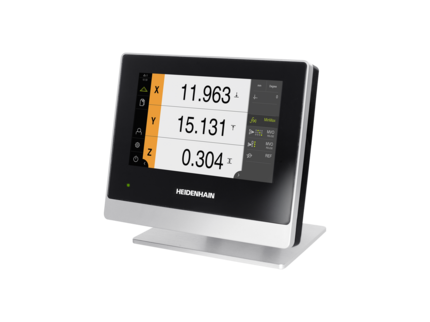

GAGE-CHEK 2000 series

  • Evaluation unit for reliable measurement and simple evaluation
  • 7-inch screen for intuitive multitouch operation (800 x 480 pixels)
  • Up to three axes (1 VPP, 11 µAPP, EnDat 2.2, TTL)
  • Switching functions for simple automation tasks
Find out more

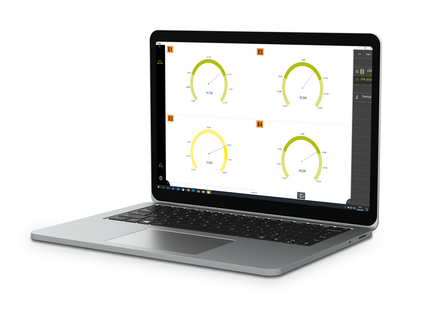

GAGE-CHEK 4000 SW

  • Evaluation software for reliable meaurement data collection
  • LOG function for uploading data directly into Excel
  • Intuitive user interface
  • Configurable axis naming
  • Graphical dial gage for measurement visualization
Find out more

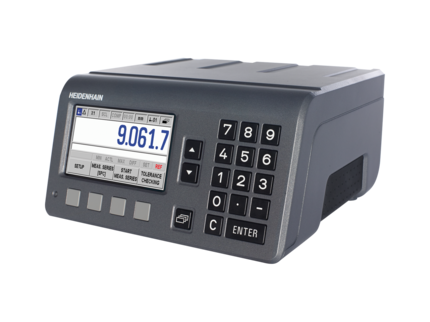

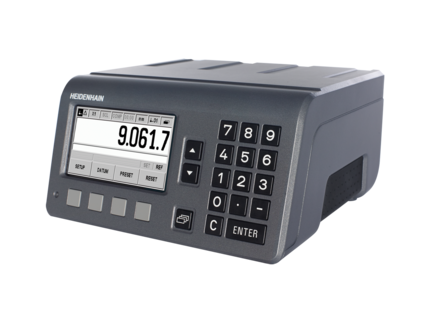

ND 200 series

  • Digital readout for measuring and inspection stations or simple measuring and positioning tasks
  • 4.3-inch screen and keyboard
  • Up to two axes (1 VPP, 11 µAPP, EnDat 2.2)
  • Switching functions for simple automated tasks
Find out more
