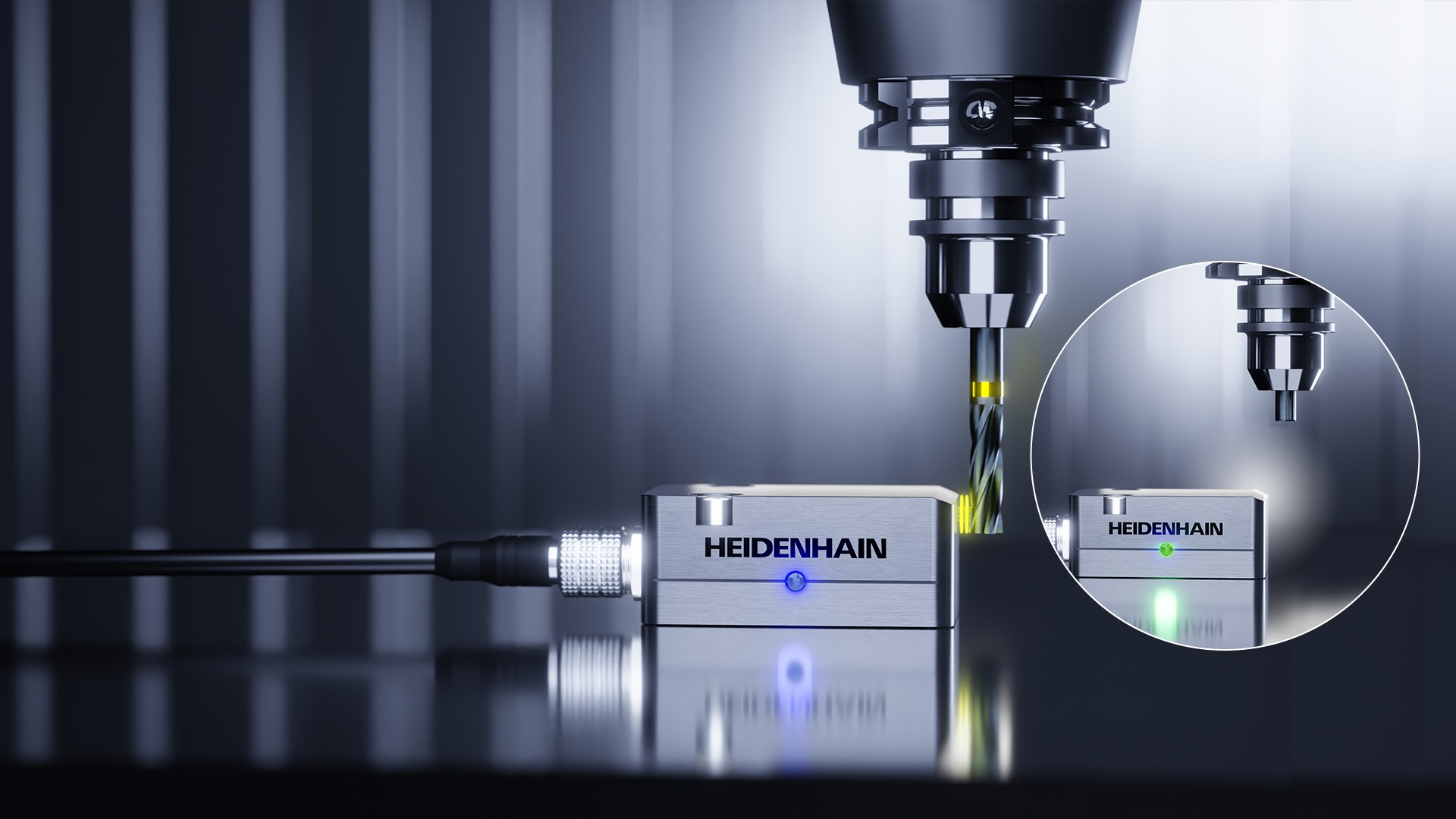

Three benefits of the TD 110

Retrofit your machine with our tool breakage detector to improve speed, cost-efficiency and process reliability.

More accuracy and throughput

MULIT-DOF TECHNOLOGY and TRANSFERABLE ACCURACY for electronics and semiconductor manufacturing

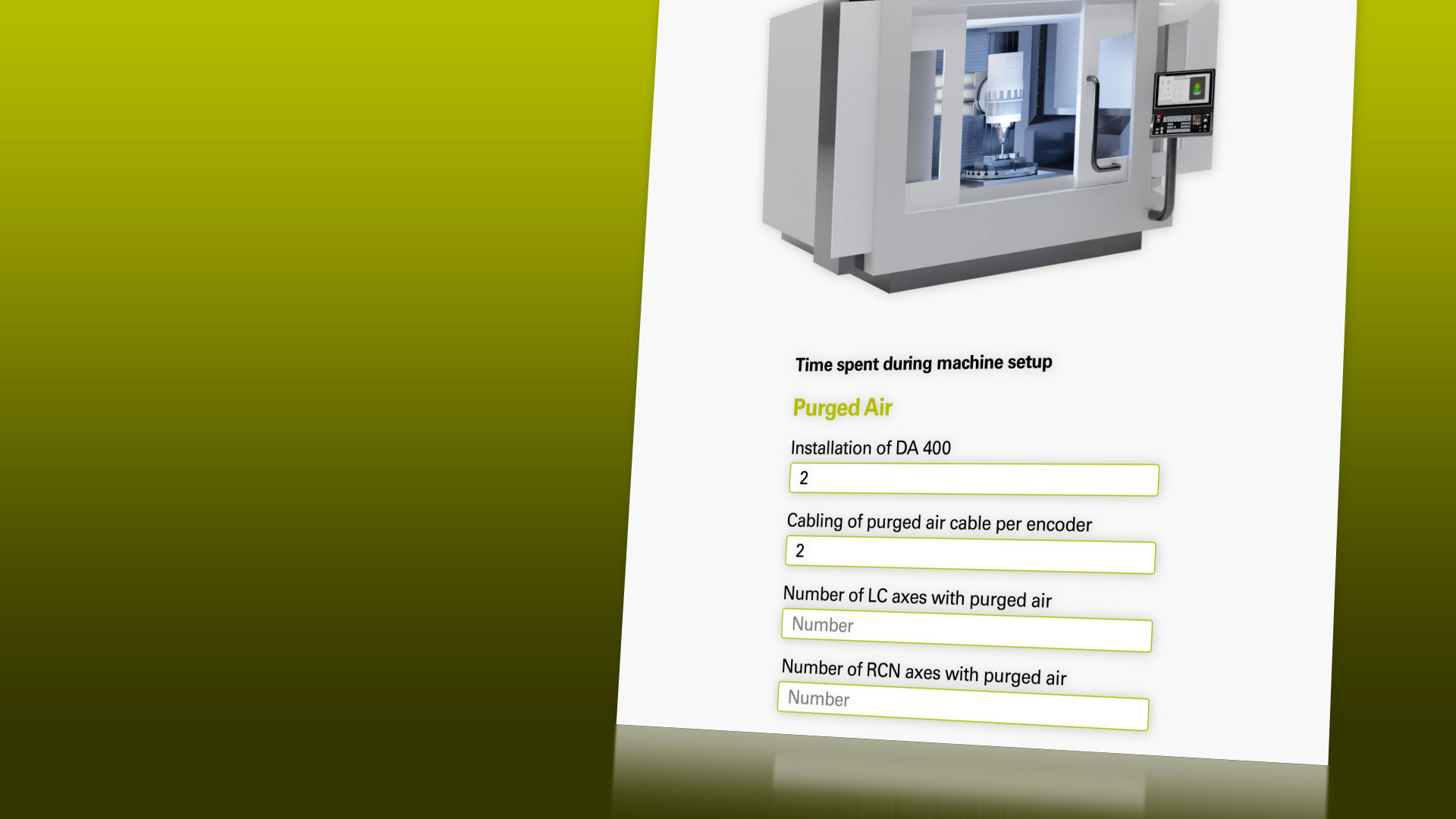

Reliable positioning without
purge air: save 99% CO2

TRUE IMAGE TECHNOLOGY: Accurate
encoder scanning despite condensation

Protect machines: encoders
with vibration feedback

Integrated additional sensors increase process reliability
and supply data for intelligent maintenance planning

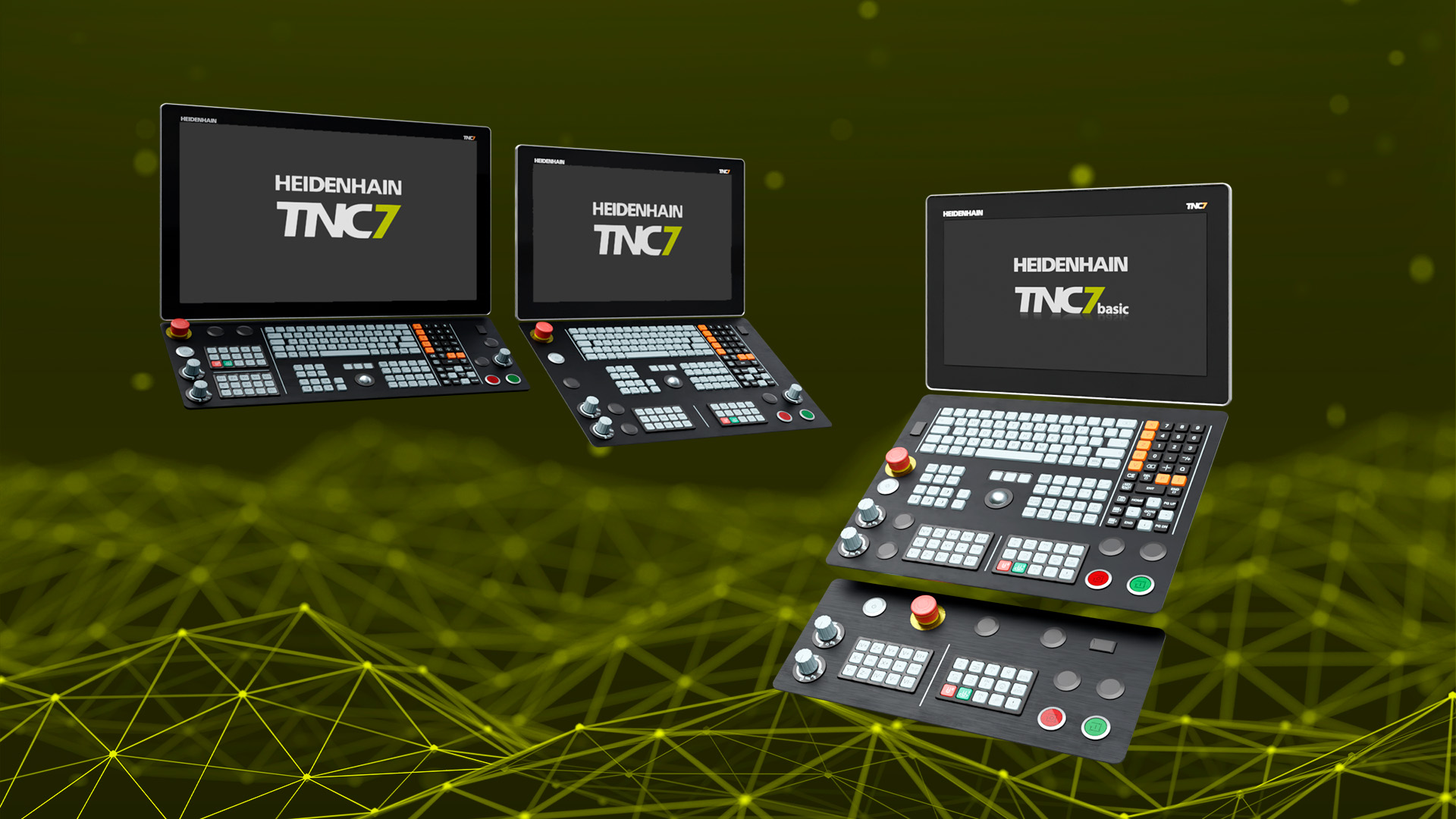

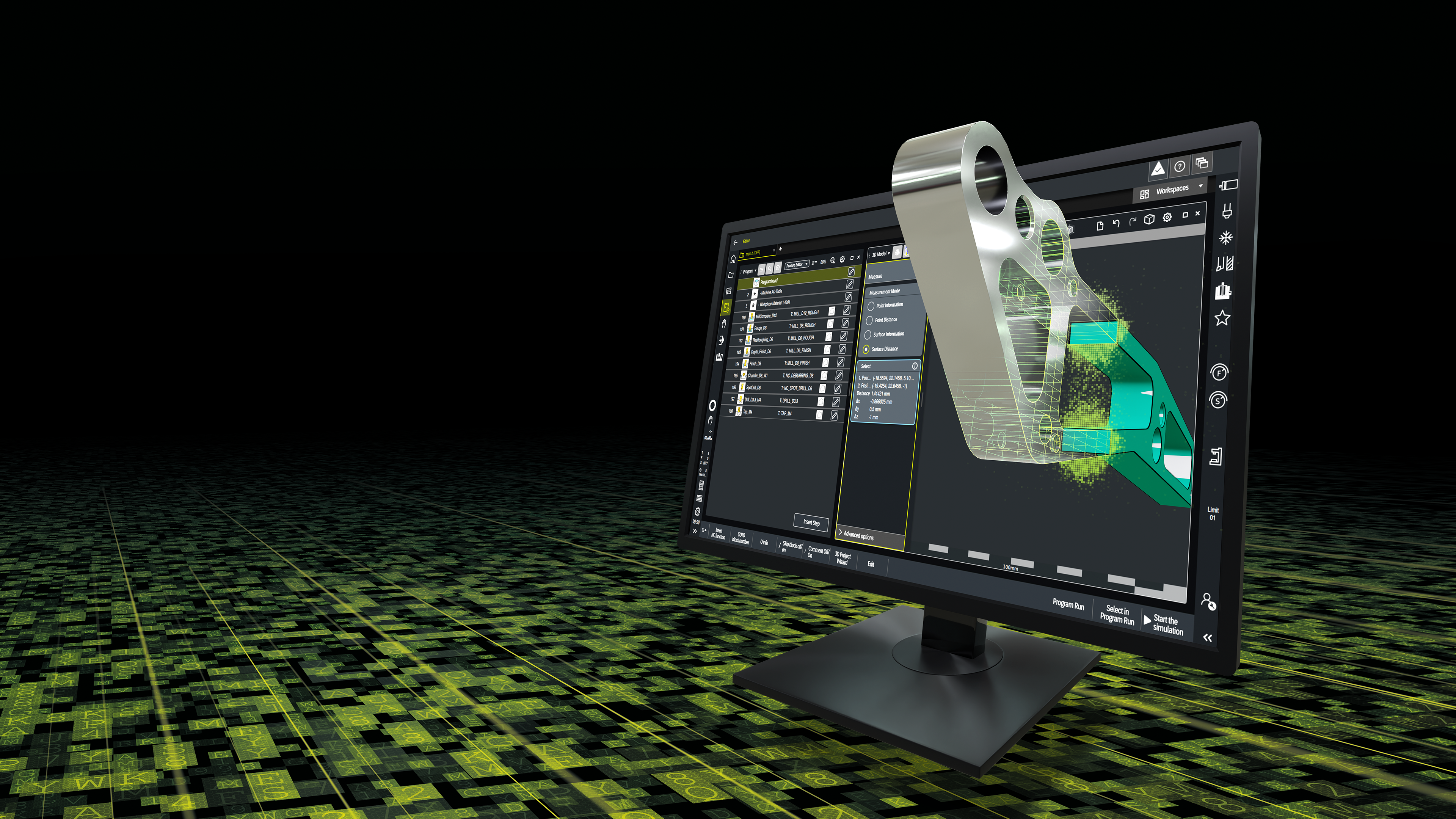

The TNC7 HMI portfolio:
More sizes, more flexibility

Harness TNC7 productivity on smaller machines
with the streamlined TNC7 Basic

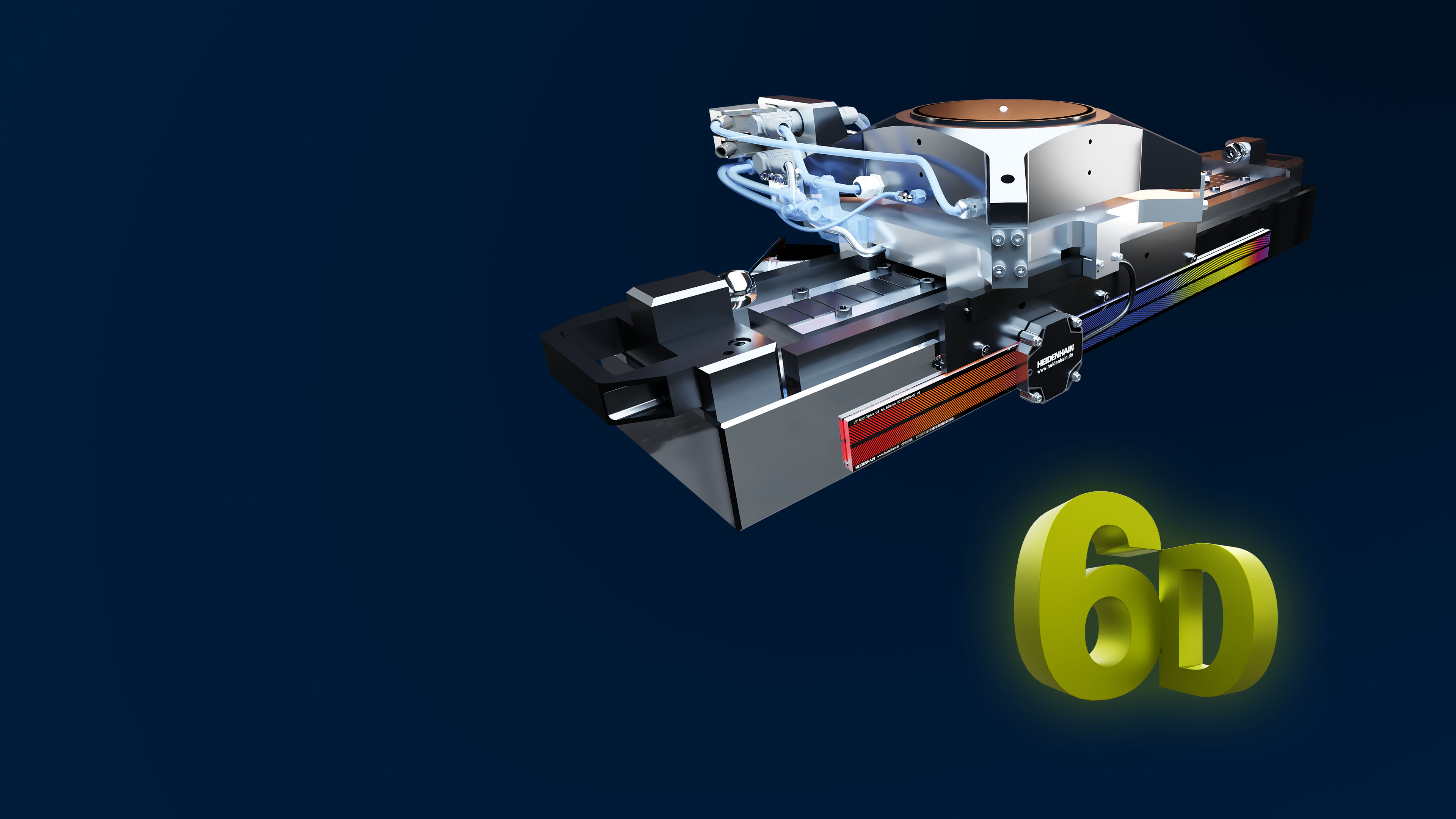

Higher productivity and performance for chip manufacturing

Achieve positioning accuracies better than 200 nanometers with MULTI-DOF TECHNOLOGY
for implementing higher-performance computer chips.

Push the envelope in advanced packaging and hybrid bonding:

Download our technology report

What's new at HEIDENHAIN

Solutions for chiplet manufacturing

HEIDENHAIN encoders and ETEL motion systems ensure higher accuracy in frontend and backend processes, especially hybrid bonding.
Visit press release

The 3-in-1 measuring camera

The VT 122 vision system and VTC software serve as a tool presetter, tool microscope and visual tool inspection aid, enabling accurate tool-edge inspection.
Find out more

TRUE IMAGE for 99% less CO2

Encoders with TRUE IMAGE TECHNOLOGY deliver accurate scale readings without purge air despite exposure to liquid contamination.
Find out more

Documentation, software, and more

Find specific product information at our Filebase and Infobase.
Visit the download center

HEIDENHAIN develops and produces linear encoders, angle encoders, rotary encoders, length gauges, touch probes, sensors, vision systems, CNC controls and digital readouts for the world’s most innovative industries, including robotics, automation, machine tools, semiconductors and electronics manufacturing.

Find out more

Find solutions for your industry

HEIDENHAIN is at home in numerous industries. Discover solutions from the HEIDENHAIN Corporate Group for your application. Discuss your requirements with our sales engineers, and let our brands support your market success with their extensive product portfolios and strong industry expertise.

Machine tool Automation Electronics Robotics Medical Drive systems Elevators Structural Health Monitoring Wind energy Printing

Your applications are demanding. Our products have the answers.

Linear encoders

Linear encoders from HEIDENHAIN measure the position of linear axes without added mechanical intervention, allowing your machines to attain exceptional positioning accuracy and machining speed.

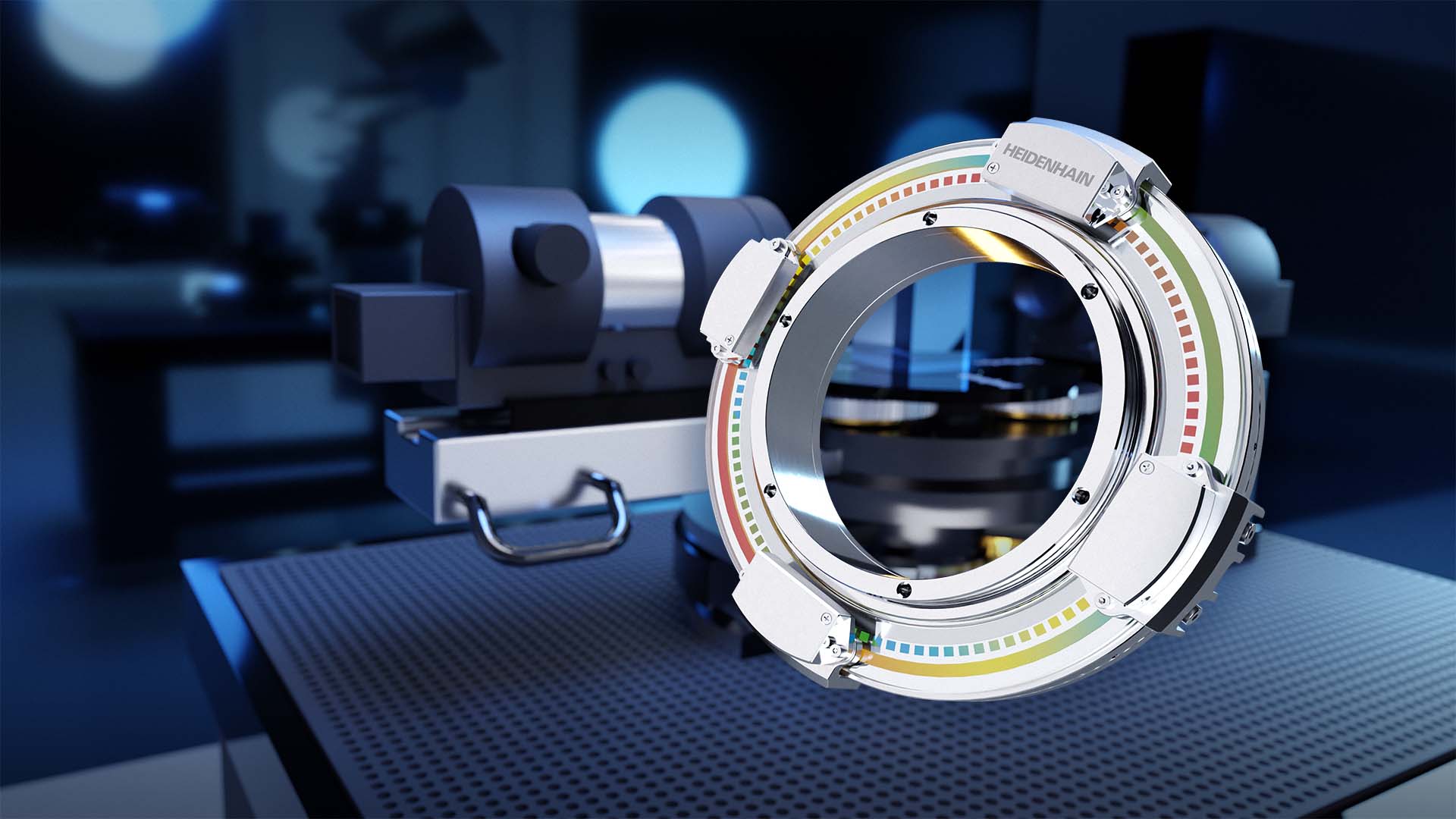

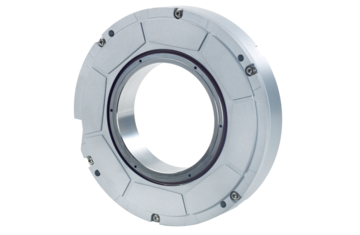

Angle encoders

Enjoy high-accuracy rotary axis positioning down to a few arc seconds. HEIDENHAIN has the optimal angle encoder for your application, with sealed, modular, and highly integrated, built-in bearing options.

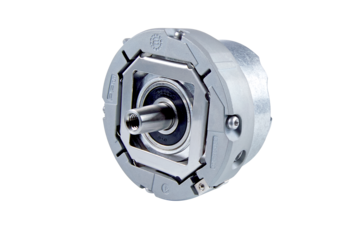

Rotary encoders

Entrust your application to premium quality, durability, and precision. The robust and easy-to-install rotary encoders from HEIDENHAIN measure speed and position with accuracy and dependability.

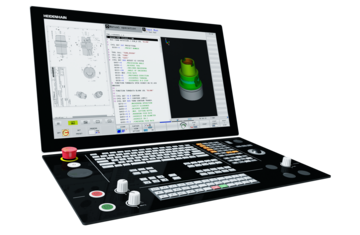

CNC controls

CNC controls from HEIDENHAIN are shop-friendly, versatile, and high-performance. These milling and turning controls optimize motion control on your machine tools, turning them into user-friendly workstations on the shop floor.

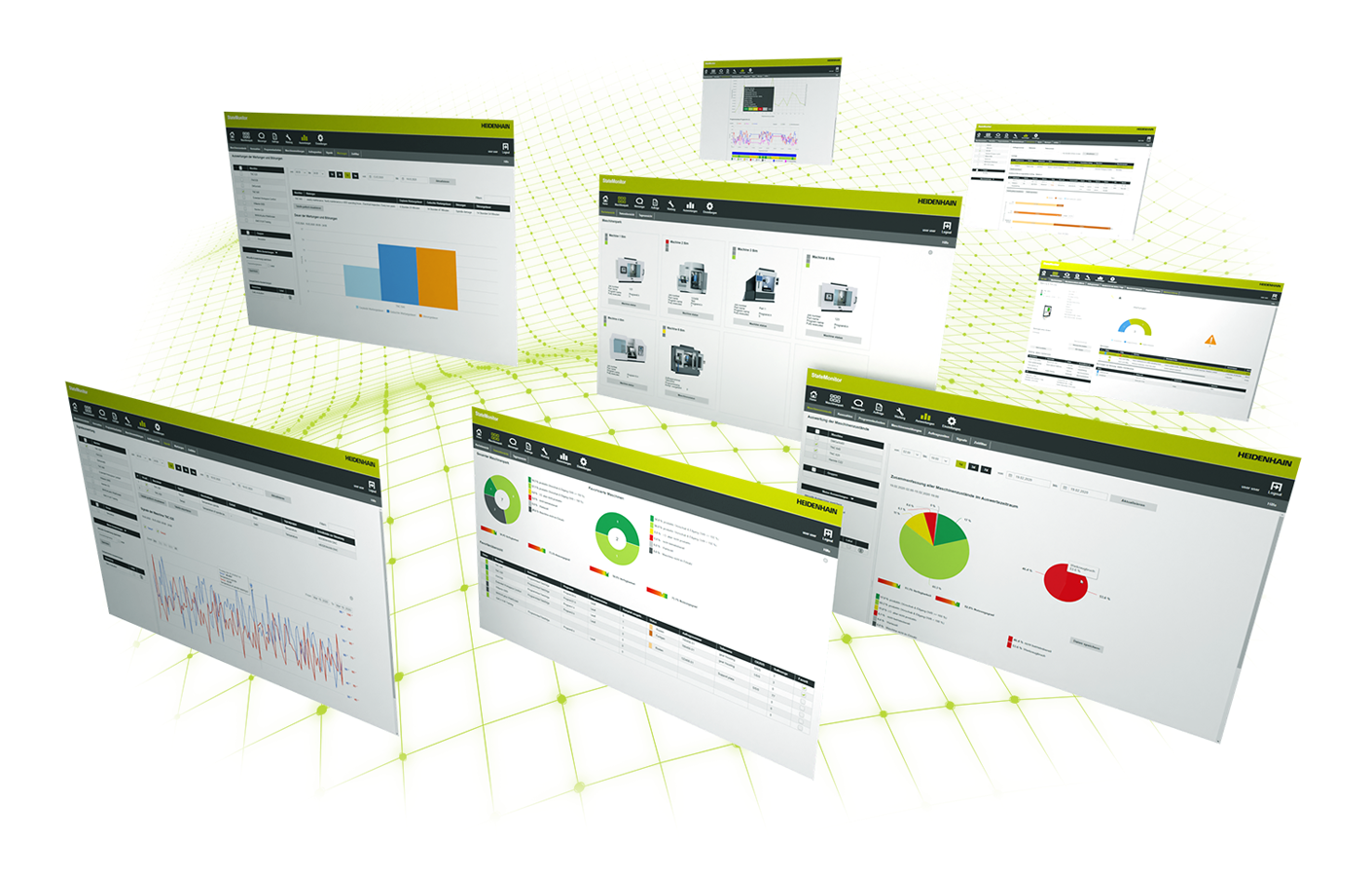

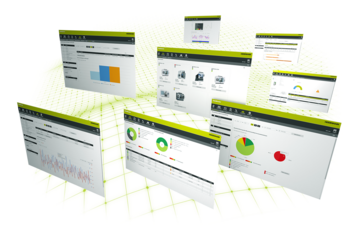

Digital Shop Floor software solutions

Gain 360° of insight into your shop floor. The Digital Shop Floor solutions from HEIDENHAIN model your complete process chain through machine-oriented software, advisory support, online services, and more.

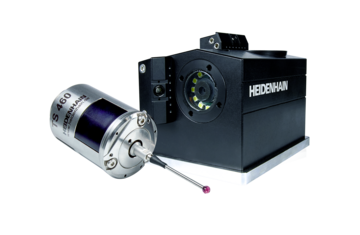

Touch probes and camera systems

How can you reduce setup times, boost machine-tool uptimes, and ensure process reliability for high manufacturing quality? With HEIDENHAIN touch probes and camera systems for tool and part measurement.

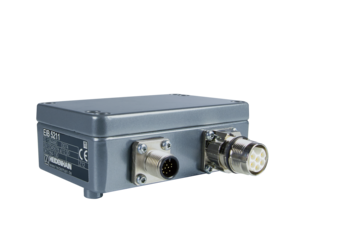

Signal converters

HEIDENHAIN signal converters adapt encoder signals to the interface requirements of your application's downstream electronics. They can even process additional sensor signals as needed.

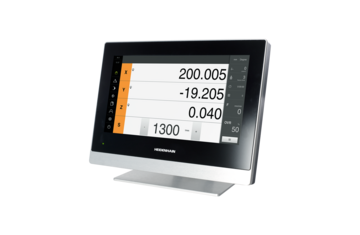

Digital readouts

High-performance digital readouts from HEIDENHAIN save time and simplify the operation of machines, automation systems, and metrology applications. Benefits include their built-in touchscreen, intuitive user interface, and dialogue guidance.

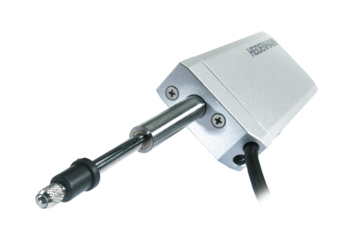

Lenght gauges

Length gauges from HEIDENHAIN can measure even long measuring ranges quickly, reliably, and accurately. Leverage these benefits in your production measurement technology for multi-gauging fixtures, measuring equipment monitoring, and position measurement.

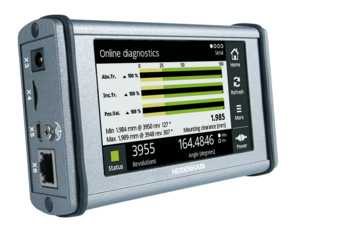

Inspection and testing devices

HEIDENHAIN encoders deliver all of the information needed for adjustment, initial configuration, and monitoring. Our inspection and testing devices leverage these data for machine acceptance testing, functionality testing, and extensive diagnostics.

Linear encoders

Linear encoders from HEIDENHAIN measure the position of linear axes without added mechanical intervention, allowing your machines to attain exceptional positioning accuracy and machining speed.

Angle encoders

Enjoy high-accuracy rotary axis positioning down to a few arc seconds. HEIDENHAIN has the optimal angle encoder for your application, with sealed, modular, and highly integrated, built-in bearing options.

Rotary encoders

Entrust your application to premium quality, durability, and precision. The robust and easy-to-install rotary encoders from HEIDENHAIN measure speed and position with accuracy and dependability.

CNC controls

CNC controls from HEIDENHAIN are shop-friendly, versatile, and high-performance. These milling and turning controls optimize motion control on your machine tools, turning them into user-friendly workstations on the shop floor.

Digital Shop Floor software solutions

Gain 360° of insight into your shop floor. The Digital Shop Floor solutions from HEIDENHAIN model your complete process chain through machine-oriented software, advisory support, online services, and more.

Touch probes and camera systems

How can you reduce setup times, boost machine-tool uptimes, and ensure process reliability for high manufacturing quality? With HEIDENHAIN touch probes and camera systems for tool and part measurement.

Signal converters

HEIDENHAIN signal converters adapt encoder signals to the interface requirements of your application's downstream electronics. They can even process additional sensor signals as needed.

Digital readouts

High-performance digital readouts from HEIDENHAIN save time and simplify the operation of machines, automation systems, and metrology applications. Benefits include their built-in touchscreen, intuitive user interface, and dialogue guidance.

Lenght gauges

Length gauges from HEIDENHAIN can measure even long measuring ranges quickly, reliably, and accurately. Leverage these benefits in your production measurement technology for multi-gauging fixtures, measuring equipment monitoring, and position measurement.

Inspection and testing devices

HEIDENHAIN encoders deliver all of the information needed for adjustment, initial configuration, and monitoring. Our inspection and testing devices leverage these data for machine acceptance testing, functionality testing, and extensive diagnostics.

Get personalized advice

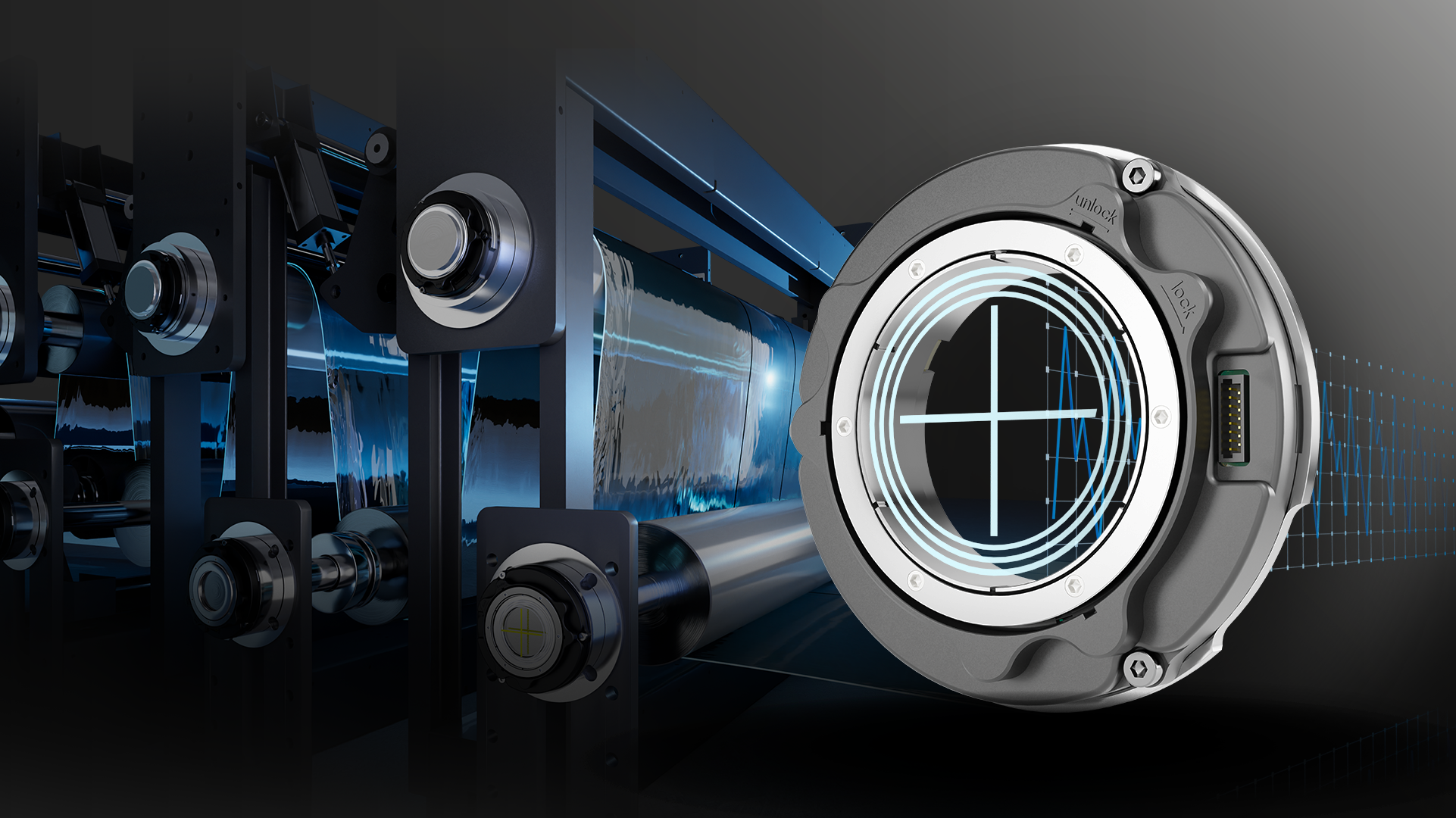

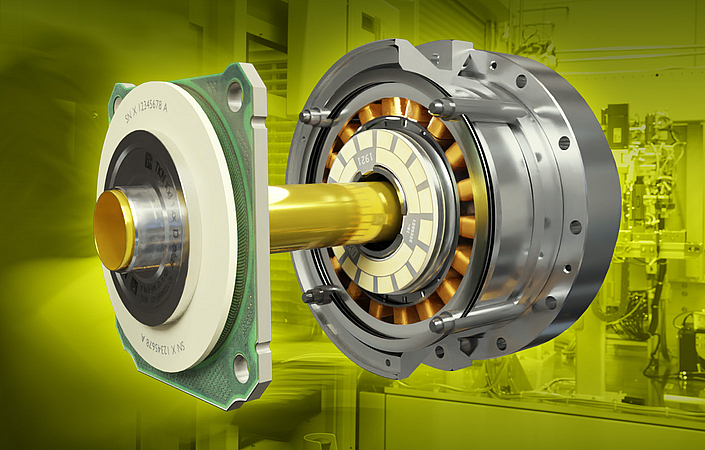

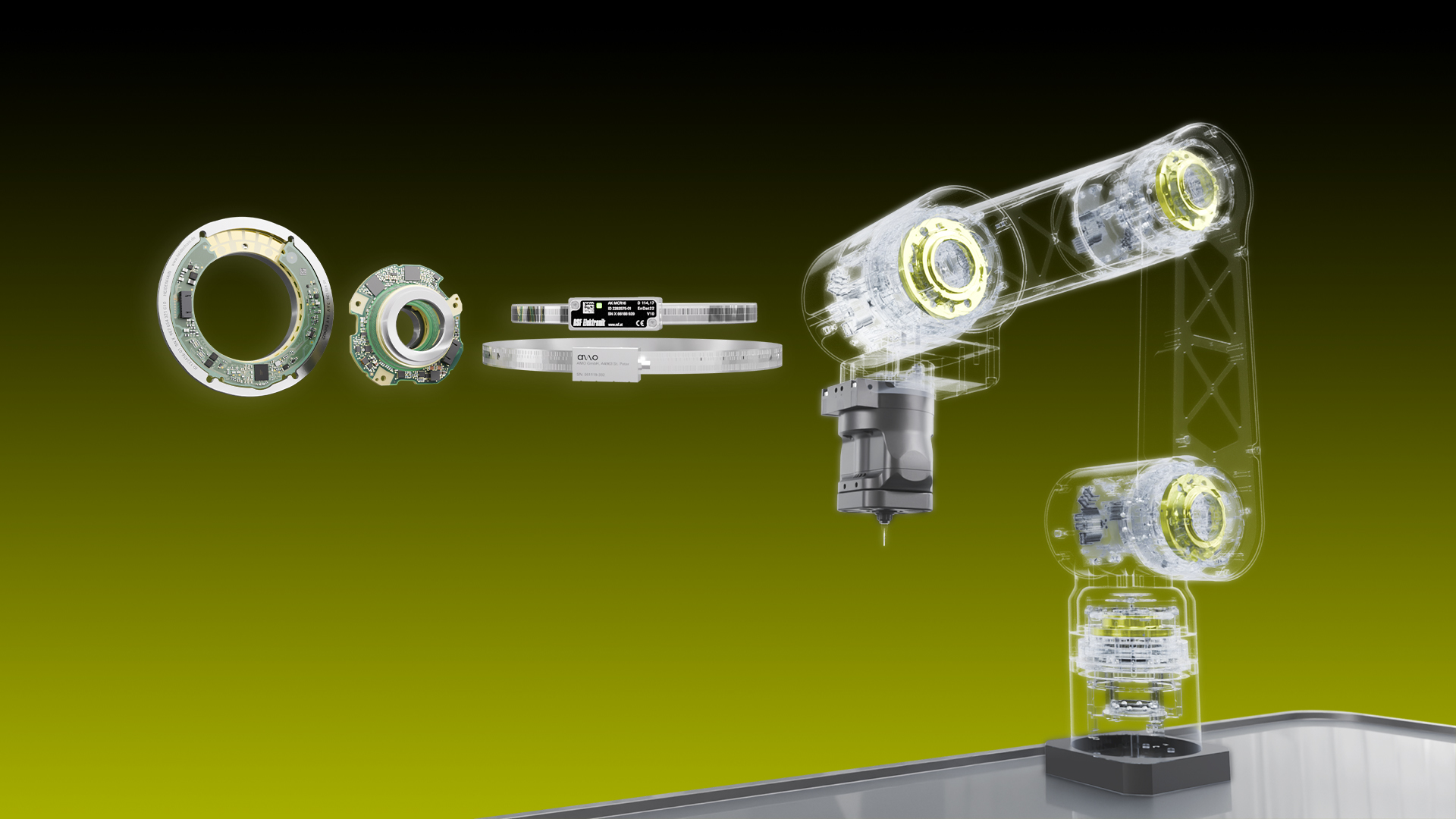

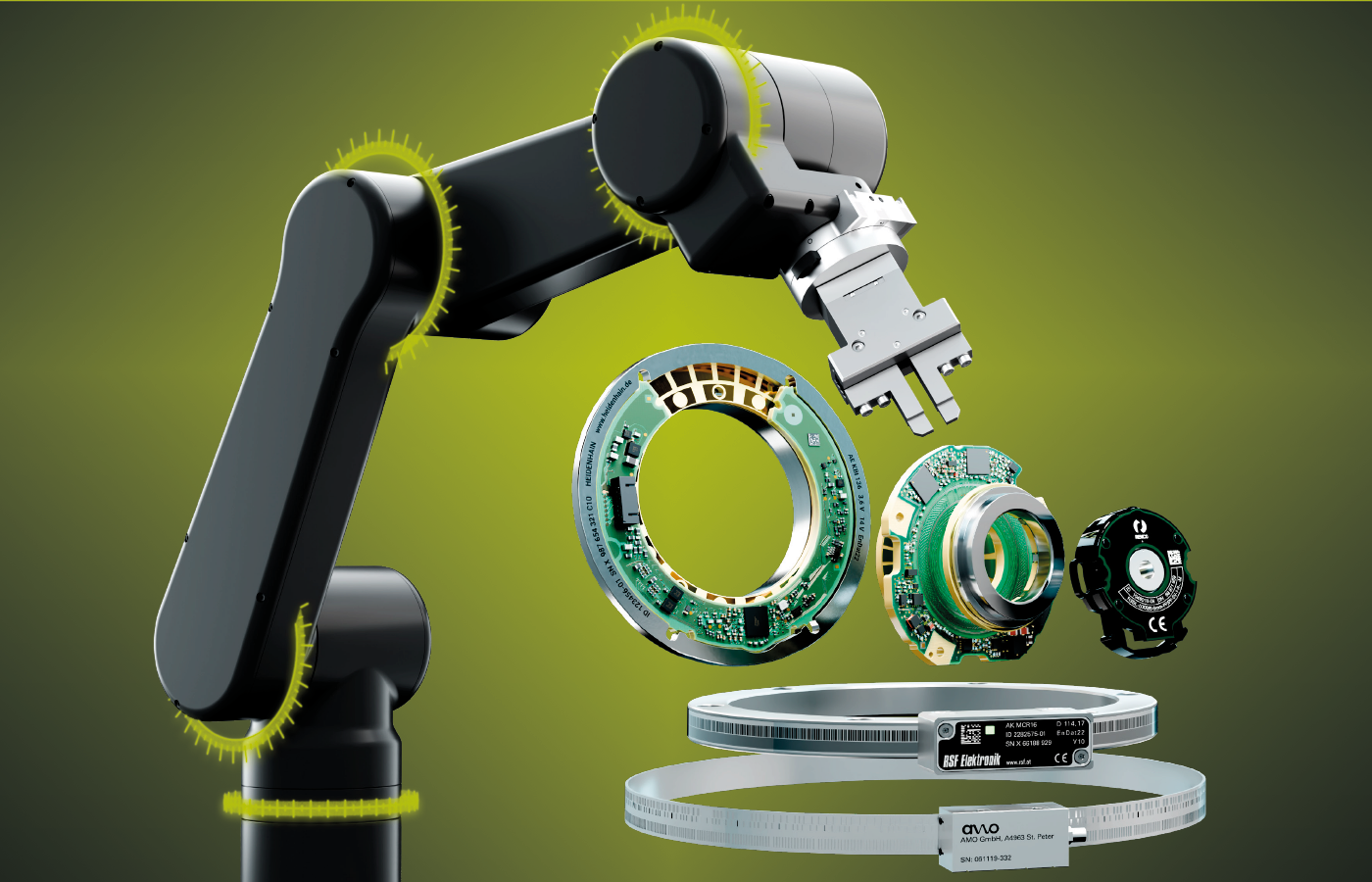

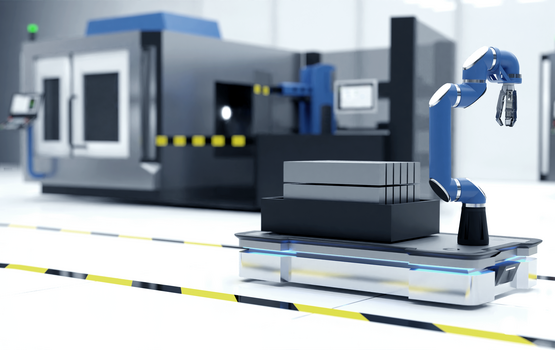

Upvalue your robots and cobots

Rotary encoders with force and vibration feedback

Discover encoders for the full spectrum of robotics and automation. Solutions from HEIDENHAIN, AMO, RENCO und RSF encompass dual and secondary encoders for advanced robotics, including secondary encoders that, along with greater accuracy on robots and cobots, enable collision monitoring without additional torque sensors. We also offer inductive rotary encoders with added functionality, such as the ECI 1323 Splus and EQI 1335 Splus, which deliver built-in vibration analysis along with position feedback.

View press release

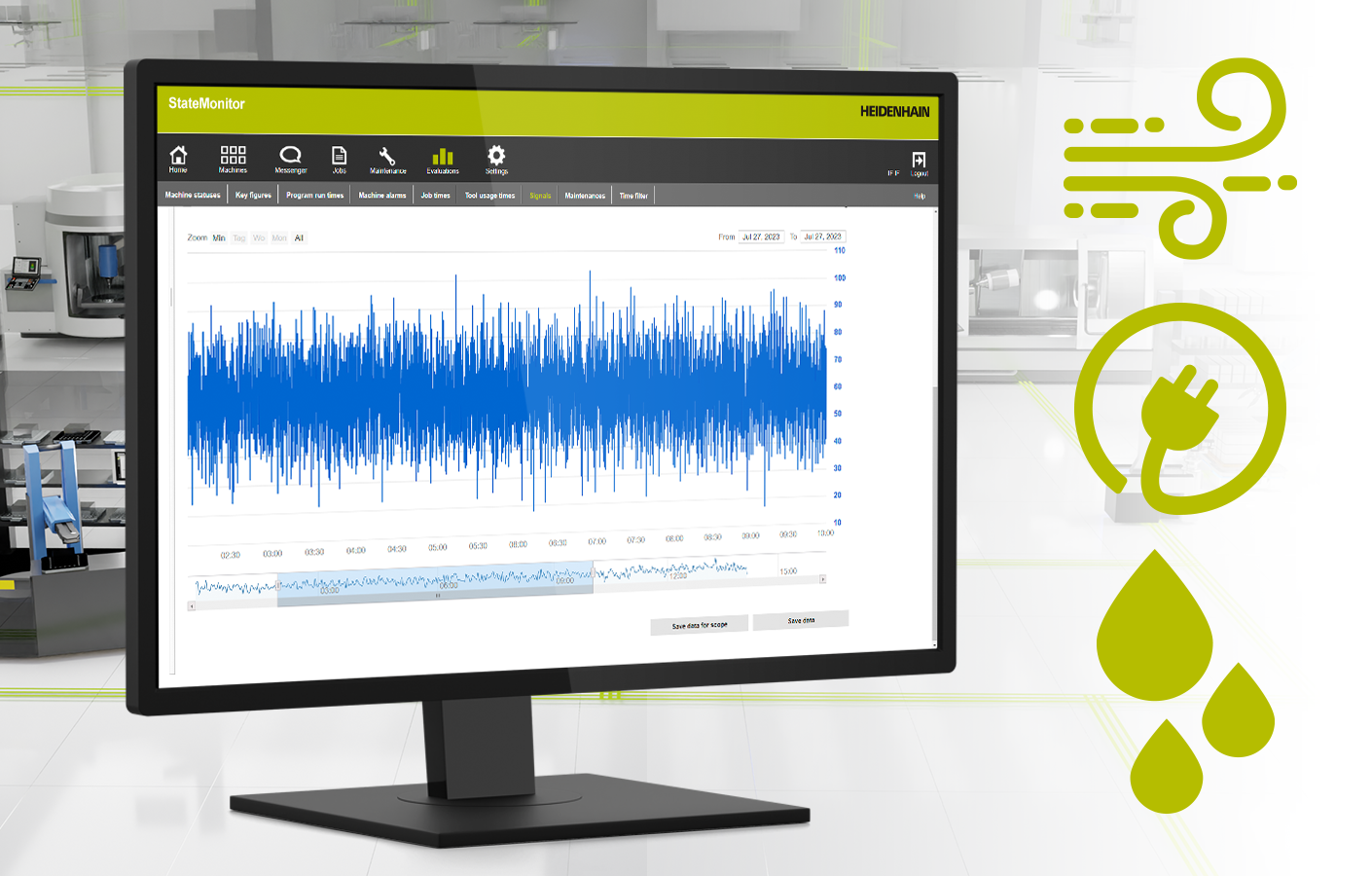

New StateMonitor features

Energy monitoring and ERP connectivity improve Digital Shop floor efficiency

The HEIDENHAIN StateMonitor software gives users insight into how much energy their machines are consuming. The enhanced energy monitoring function delivers consumption data for power, process water and compressed air, allowing users to identify energy guzzlers and reduce consumption costs. Meanwhile, StateMonitor’s job data interface ensures data consistency across different systems, making important shopfloor data available to higher-level ERP and MES platforms.

View press release

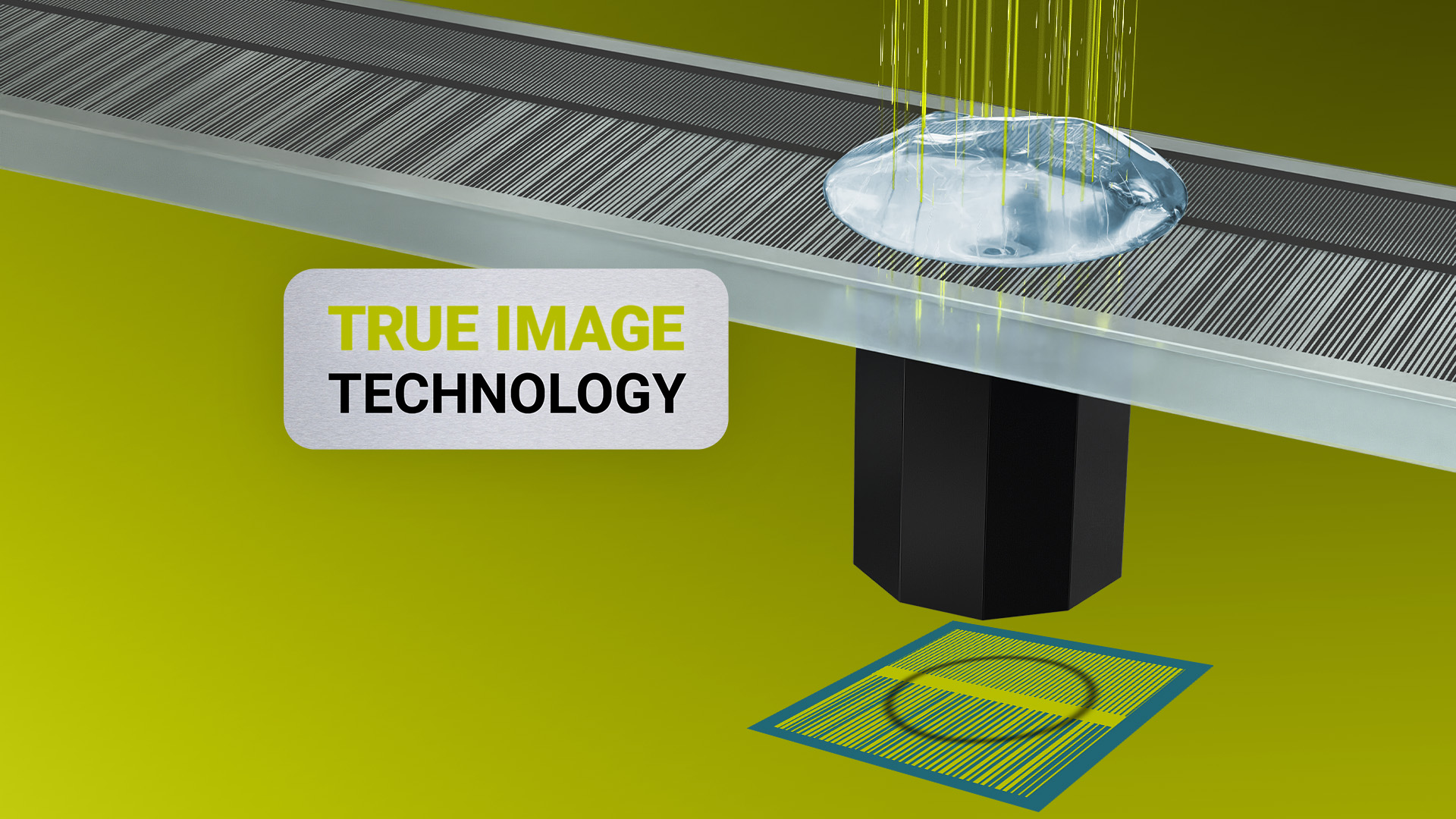

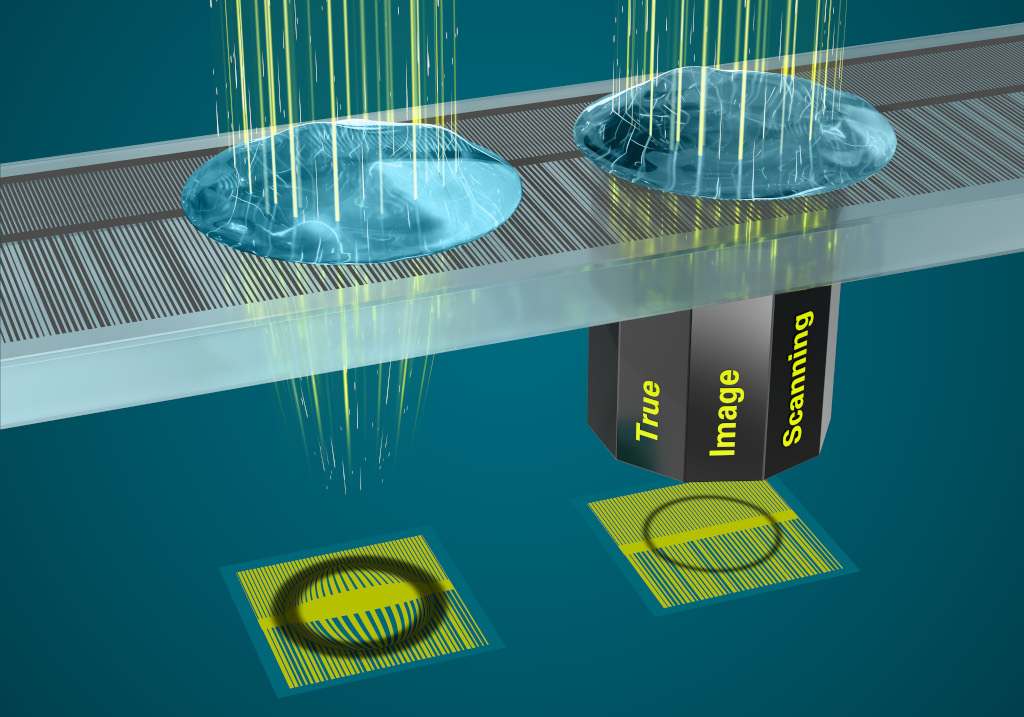

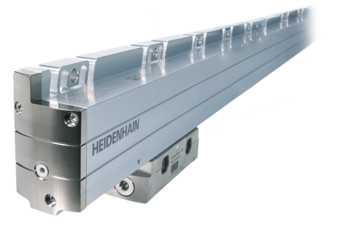

Position feedback without purge air

TRUE IMAGE TECHNOLOGY for sealed linear and angle encoders from HEIDENHAIN

Thanks to TRUE IMAGE TECHNOLOGY, the Series 6 LC linear encoders and Series 1 RCN angle encoders from HEIDENHAIN maintain a clear image of their scales, even in machine tools with condensation and other liquid contamination. A special light-guiding element eliminates optical distortions, allowing these encoders to reliably deliver high-accuracy position feedback, in many cases without purge air. The results are lower system costs and an up to 99% smaller carbon footprint.

View press release

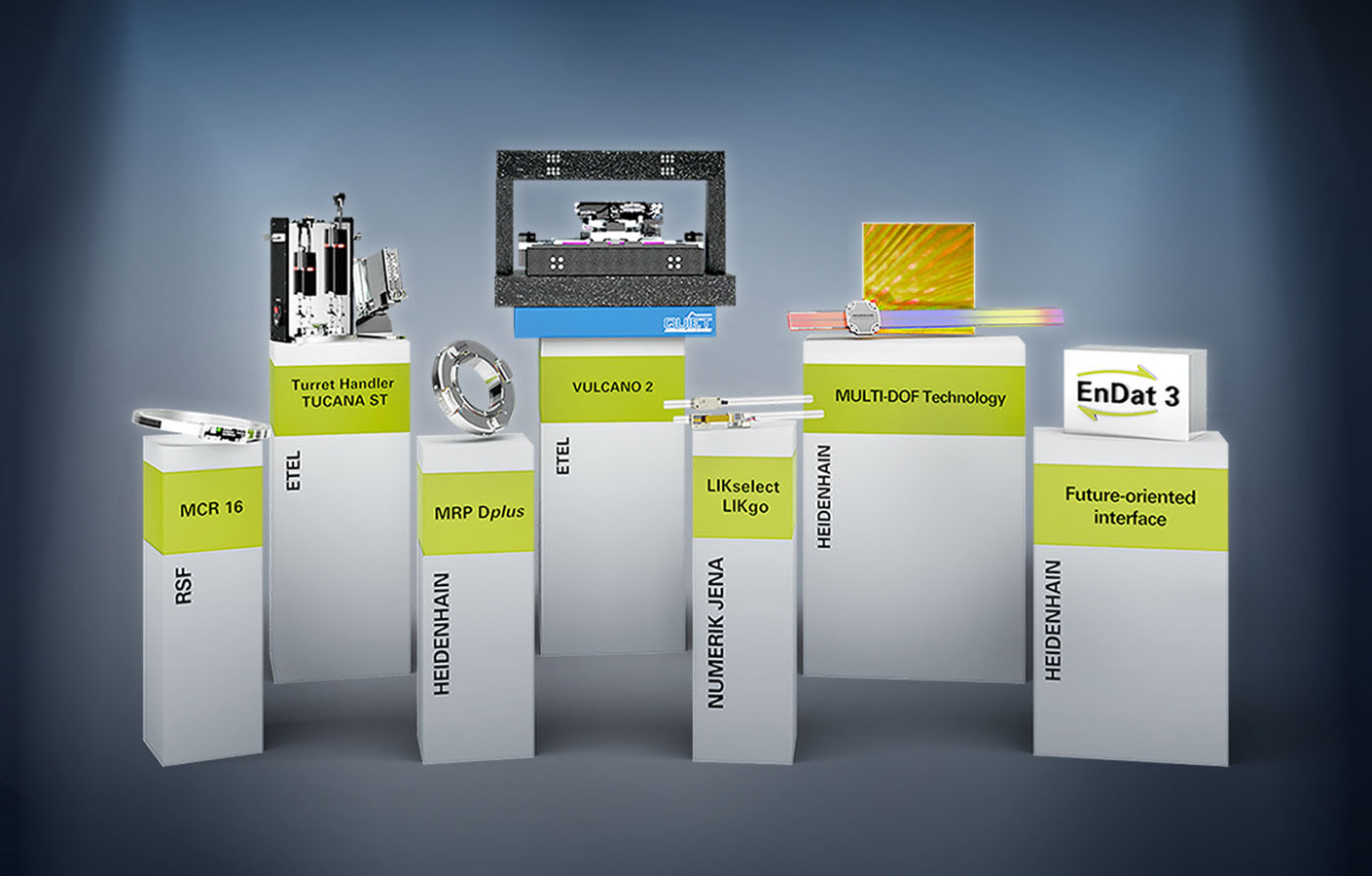

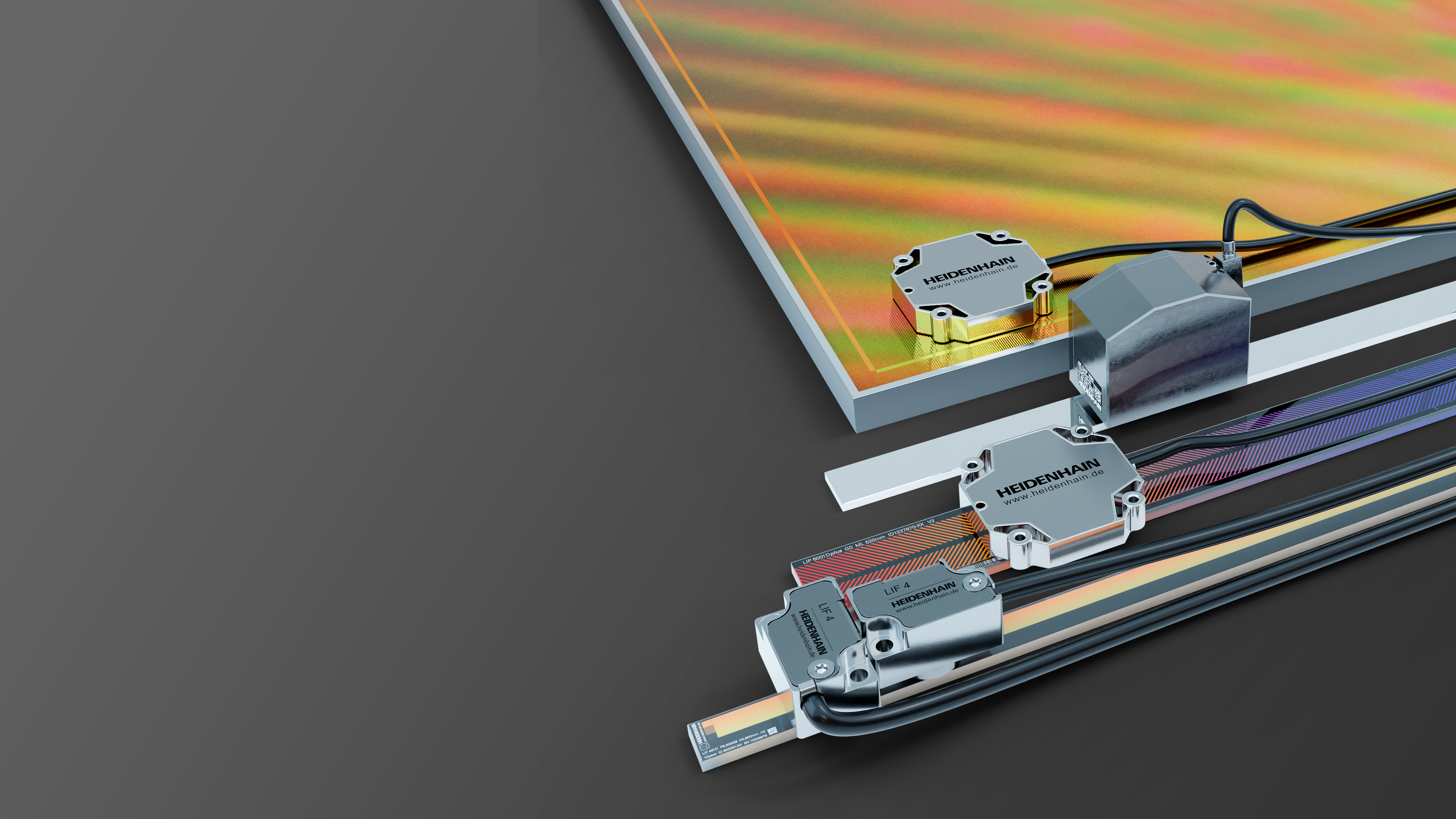

Improve accuracy and throughput

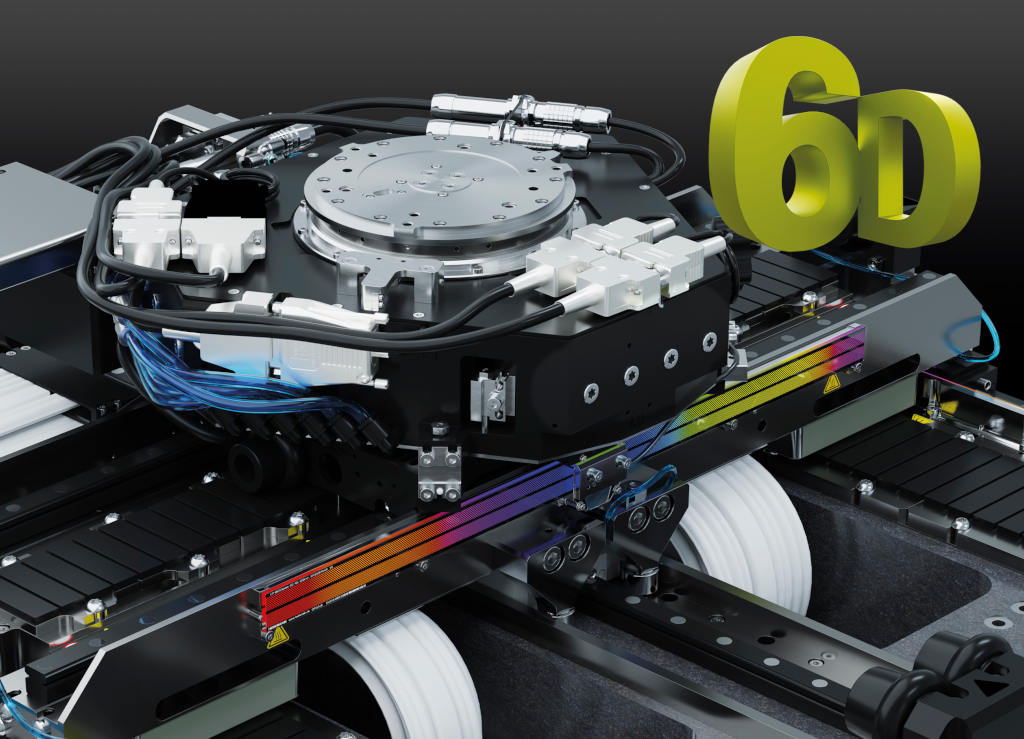

Unlocking new potential in chipmaking with HEIDENHAIN MULTI-DOF TECHNOLOGY

Chiplet technology and new mid-end-of-line processes in semiconductor manufacturing have laid the groundwork for artificial intelligence, humanoid robots and self-driving vehicles. Advances in production miniaturization have downscaled the distance between electrical contacts to 2 microns, thus reaching a key milestone. But even smaller structures are attainable at greater throughput with the HEIDENHAIN encoders and ETEL motion systems being showcased at SEMICON West 2024.

Read the press release

The VT 122 measuring camera

Holistic tool inspection from the convenience of your screen

The HEIDENHAIN VT 122 measuring camera and VTC software are a single intelligent system with the threefold functionality of a tool presetter, tool microscope and visual inspection aid. Take accurate images of the tool’s edge while it is inside the machine envelope. Automatically measure tool length and diameter. Then visually inspect the tool and measure its wear on the screen of your control or PC. The benefits are time savings, higher machining accuracy, reduced scrap and less rework.

View press release
